What Is A Fuse Explained

A fuse is a protective electrical device that prevents circuit overload, short circuits, and wiring faults by breaking the flow of fault current. It safeguards electrical systems, equipment, and wiring from damage caused by unintended electrical paths or excessive current.

What Is A Fuse?

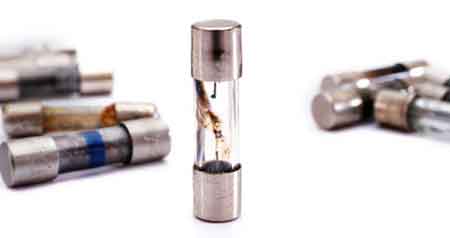

A fuse is an electrical safety device that protects electrical circuits and electronic devices from damage caused by excessive current.

✅ A fuse is an electrical safety device designed to interrupt excessive current flow and protect circuits from damage.

✅ A fuse prevents hazards caused by overloads, short circuits, and wiring faults.

✅ Fuses ensure electrical systems operate safely by stopping fault current through a thin, sacrificial wire or element.

Power System Protection Courses

Power System Fundamentals

Short Circuit Study & Protective Device Coordination

Arc Flash Analysis/Study - IEEE 1584 Update

A fuse is a protective electrical safety device designed to interrupt excessive current and prevent damage to circuits, equipment, and wiring. By disconnecting the circuit when an overload, short circuit, or wiring fault occurs, it safeguards against fire hazards and equipment failure. This fuse protection is achieved through a thin element that melts when the current exceeds safe limits, cutting off the fault current before it spreads further. To understand how engineers maintain electrical system safety, explore our electrical protection channel, which covers essential devices and best practices.

A fuse is one of the simplest and most effective forms of circuit protection. It acts as a sacrificial component that interrupts electrical flow when current levels exceed the system’s capacity. Unlike a circuit breaker, which can be reset, a fuse must be replaced once it operates.

Key purposes of a fuse include:

• Protecting wiring, devices, and people from dangerous overcurrent

• Isolating faults quickly to prevent fire or equipment damage

• Providing reliable, cost-effective safety in electrical systems

How a Fuse Works

These devices function by creating a controlled weak point in a circuit. When the current surpasses the rating, the fuse protective element melts, breaking the connection. Different applications require different responses: fast-acting fuse designs protect sensitive electronics, while time-delay types (slow-blow) allow temporary surges, such as those from motor start-ups, without shutting down the circuit.

Key operational fuse concepts include:

• Time-current curves, which show how quickly a device reacts to varying levels of overcurrent

• Selective coordination, ensuring only the faulty section of a system disconnects while the rest remains powered

• Energy limitation, often described by I²t ratings, which measure the total energy let through during fault conditions

Fuse Ratings and Standards

Every fuse carries specific ratings that define its performance. The current rating shows how much current it can safely carry, while the voltage rating ensures it can interrupt circuits at the required level. Breaking capacity (or interrupting rating) is equally important, as it defines the maximum fault current the device can clear without failing.

To ensure safety and consistency, manufacturers comply with international standards:

• IEC 60269, covering low-voltage fuse applications globally

• UL 248, used widely across North America

• Local electrical codes, which define installation and safety requirements in homes, businesses, and industry

One important safeguard against dangerous wiring faults is AFCI protection, which helps prevent electrical fires caused by arc faults. For a deeper insight, see our guide on arc fault circuit interrupter protection devices, which detect and stop arcing conditions.

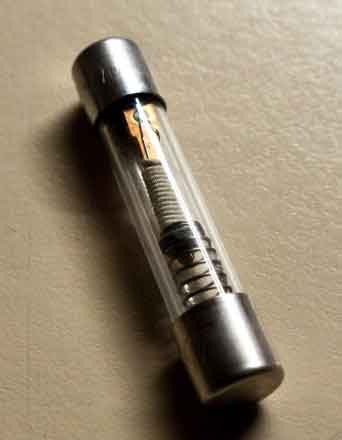

Fuse Construction and Materials

The construction of fuses varies depending on use. The fusible link may be made of copper, silver, zinc, or alloys selected for predictable melting behavior. The body may be glass, ceramic, or molded plastic. Sand-filled designs improve arc quenching and safety at higher fault levels. These choices directly affect performance, durability, and inspection methods.

Types of Fuses

Different styles of fuses are designed for various environments. Cartridge types are commonly used in panels and appliances, while blade-style elements predominate in automotive systems. High-voltage fuses protect power transmission and distribution equipment.

Other notable types include:

• Resettable PTC fuses, which recover automatically once the fault clears

• Thermal links, which trigger in response to overheating in appliances

• NH and expulsion fuse designs, used in industrial and utility distribution systems

• Specialty components for semiconductors, solar arrays, and electronics

Fuses in Everyday Use

In household systems, a blown fuse is often the first sign of trouble, typically caused by overloaded circuits or faulty appliances. When this happens, the affected area loses power until the component is replaced.

Safe replacement practices include:

• Always matching the fuse type and rating specified by the manufacturer or code

• Turning off the power before removing or installing a new element

• Investigating the cause of failure before restoring the circuit

• Considering an upgrade from older fuse boxes to breaker panels for convenience and safety

Methods for assessing risks and planning protective measures. A solid understanding of fault current calculation is essential for designing effective short-circuit protection systems.

How Is a Fuse Different from a Circuit Breaker?

Both devices protect against overcurrent, but their operation and convenience differ. A fuse melts and disconnects permanently, while a circuit breaker trips a mechanical switch that can be reset. Different circuit breaker types are designed to protect against short circuits and overloads in specific applications.

Main differences include:

• Function: a fuse relies on melting; a breaker uses an electromechanical trip

• Reusability: fuses are single-use, breakers reset and reuse

• Responsiveness: breakers typically react faster in modern systems

• Flexibility: breakers offer adjustable ratings for different loads

• Cost: fuses are cheaper initially; breakers save money over time

• Size: fuses are smaller, while breakers are larger and panel-mounted

• Indicators: breakers often include visual trip flags; fuses may require inspection

Industrial and Utility Fuse Applications

Beyond homes and small devices, fuses play a vital role in heavy industry and power distribution. High-voltage protection is critical in substations and transmission lines. NH fuses, expulsion fuses, and bayonet designs are widely used in these environments, offering robust fault-clearing capacity while meeting strict safety standards.

The fuse remains one of the most straightforward and dependable forms of overcurrent protection. By providing fast, automatic disconnection under fault conditions, they safeguard wiring, devices, and people from electrical hazards. While circuit breakers have become more common in modern installations, fuses continue to serve in automotive, industrial, and high-voltage applications worldwide. Choosing the right circuit protection device and understanding its ratings, standards, and construction are essential for maintaining safe and reliable electrical systems.
